SankeyDiagramControl Class

Displays a multilevel Sankey diagram.

Namespace: DevExpress.XtraCharts.Sankey

Assembly: DevExpress.XtraCharts.v20.2.UI.dll

Declaration

[SerializationContext(typeof(SankeySerializationContext))]
public class SankeyDiagramControl :
    Control,
    ISankeyContainer,
    IToolTipControlClient,
    ISupportLookAndFeel,
    ISankeyRenderProvider,
    IChartRenderProvider,
    IPrintable,
    IBasePrintable
<SerializationContext(GetType(SankeySerializationContext))>
Public Class SankeyDiagramControl
    Inherits Control
    Implements ISankeyContainer,
               IToolTipControlClient,
               ISupportLookAndFeel,
               ISankeyRenderProvider,
               IChartRenderProvider,
               IPrintable,
               IBasePrintable

Remarks

A Sankey diagram visualizes the flow magnitude (weights) between value sets. The elements being connected are called nodes; the connections are caled links. The higher the flow magnitude, the wider the link is. Nodes arranged in a column comprise a level. The control automatically arranges nodes and links based on the underlying data.

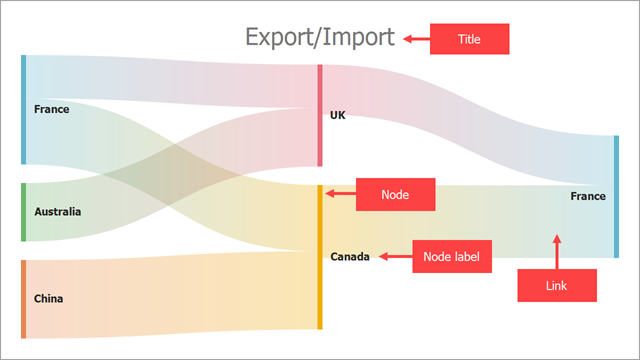

sankey diagram elements

Demos

The Sankey Diagram control ships with a set of demo applications. To try out the control, run the Demo Center.

Add to the Project

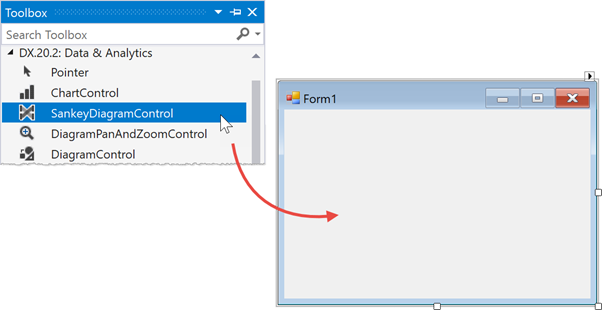

Drag and drop the SankeyDiagramControl component from the Toolbox to the form to add a Sankey diagram to the project.

This adds references to the following assemblies to the project:

  • DevExpress.Charts.v20.2.Core.dll
  • DevExpress.Data.Desktop.v20.2.dll
  • DevExpress.Data.v20.2.dll
  • DevExpress.Printing.v20.2.Core.dll
  • DevExpress.XtraPrinting.v20.2.dll
  • DevExpress.Utils.v20.2.dll
  • DevExpress.Utils.v20.2.Core.dll
  • DevExpress.XtraBars.v20.2.dll
  • DevExpress.XtraCharts.v20.2.dll
  • DevExpress.XtraCharts.v20.2.UI.dll
  • DevExpress.XtraCharts.v20.2.Wizard.dll
  • DevExpress.XtraEditors.v20.2.dll

Bind to Data

Use the DataSource property to bind the control to a data source. You can assign this property an object that implements any of the following interfaces: IList, IListSource, or IBindingList.

Then, specify the names of data members that store data for source nodes, target nodes and weights:

  • SourceDataMember - Specifies the name of a data member that contains source node labels.

  • TargetDataMember - Specifies the name of a data member that contains target node labels.

  • WeightDataMember (Optional) - Specifies the name of a data member that contains link weights. If not specified, weights are considered as 1.

using System;
using System.Collections.Generic;
using System.Windows.Forms;
using DevExpress.XtraCharts.Sankey;
namespace SankeySample {
    public partial class Form1 : Form {
        public Form1() {
            InitializeComponent();
        }
        private void Form1_Load(object sender, EventArgs e) {
            sankeyDiagramControl1.DataSource = GetSankeyItems();
            sankeyDiagramControl1.SourceDataMember = "Source";
            sankeyDiagramControl1.TargetDataMember = "Target";
            sankeyDiagramControl1.WeightDataMember = "Value";
            sankeyDiagramControl1.Titles.Add(new SankeyTitle { Text = "Export/Import" });
        }
        List<SankeyItem> GetSankeyItems() {
            List<SankeyItem> data = new List<SankeyItem> {
                new SankeyItem { Source = "France", Target = "UK", Value = 53 },
                new SankeyItem { Source = "Australia", Target = "UK", Value = 72 },
                new SankeyItem { Source = "France", Target = "Canada", Value = 81 },
                new SankeyItem { Source = "China", Target = "Canada", Value = 96 },
                new SankeyItem { Source = "UK", Target = "France", Value = 61 },
                new SankeyItem { Source = "Canada", Target = "France", Value = 89 },
            };
            return data;
        }
    }
    public class SankeyItem {
        public string Source { get; set; }
        public string Target { get; set; }
        public double Value { get; set; }
    }
}

Result:

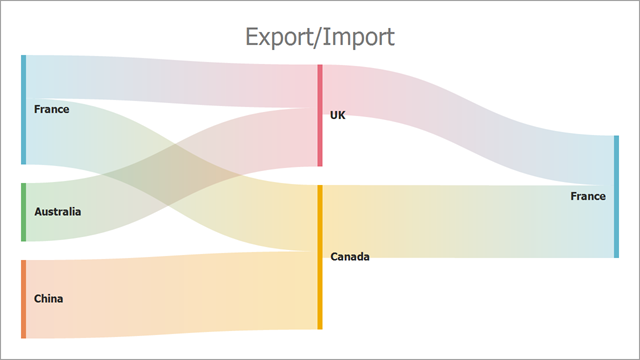

A sankey diagram with a sample data set

Customize Nodes

Use the SankeyDiagramControl.NodeLabel property to access node label settings. The following options allow you to configure text for node labels:

sankeyDiagramControl1.NodeLabel.TextOrientation = TextOrientation.TopToBottom;
sankeyDiagramControl1.NodeLabel.MaxWidth = 200;
sankeyDiagramControl1.NodeLabel.MaxLineCount = 1;
sankeyDiagramControl1.NodeLabel.TextAlignment = StringAlignment.Center;
sankeyDiagramControl1.NodeLabel.Font = new Font(FontFamily.GenericSerif, 10);

You can also handle the CustomizeNode event to access a specific node and customize it based on a certain condition:

sankeyDiagramControl1.CustomizeNode += OnCustomizeNode;
//...
private void OnCustomizeNode(object sender, CustomizeSankeyNodeEventArgs e) {
    if (e.Label.Text == "France" && e.Node.Level == 0) {
        e.Label.Font = new Font("Tahoma", 16);
        e.Label.Text = "France (Source)";
    }
}

Sort Nodes

If you wish to rearrange nodes or specify a custom sort order, create a class that implements IComparer<SankeyNode>. Then, assign an object of this class to the NodeComparer property.

The following code arranges nodes in descending order of their TotalWeights:

private void Form1_Load(object sender, EventArgs e) {
    sankeyDiagramControl1.NodeComparer = new MyNodeComparer();
}

public class MyNodeComparer : IComparer<SankeyNode> {
    public int Compare(SankeyNode x, SankeyNode y) {
        return y.TotalWeight.CompareTo(x.TotalWeight);
    }
}

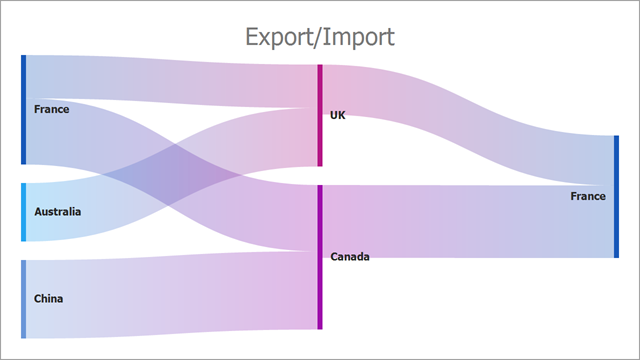

The Sankey diagram control uses the SankeyPaletteColorizer to color nodes. A new color from the palette is applied to each node with a unique label. Colors repeat if the number of unique labels exceeds the number of palette colors. To apply a gradient fill to links, the control utilizes the source and target node colors. Specify the SankeyPaletteColorizer.Palette property to change colors that are used to paint a Sankey diagram. You can select one of predefined palettes.

sankeyDiagramControl1.Colorizer = new SankeyPaletteColorizer { Palette = Palettes.NorthernLights };

You can also create a custom palette as follows:

using System.Drawing;
//...
    Palette palette = new Palette("Custom") {
        Color.Red,
        Color.Green,
        Color.Blue
    };
    sankeyDiagramControl1.Colorizer = new SankeyPaletteColorizer { Palette = palette };

Custom Colorizer

If you wish to paint links and nodes based on a custom algorithm, create a class that implements the ISankeyColorizer interface. Then, assign an object of this class to the Colorizer property.

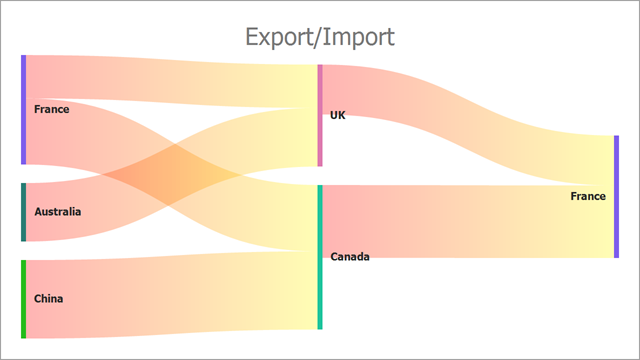

The following code implements a colorizer that applies random colors to nodes and specifies colors used to apply a gradient fill to links:

private void Form1_Load(object sender, EventArgs e) {
    sankeyDiagramControl1.Colorizer = new MyColorizer {
        LinkSourceColor = Color.Red,
        LinkTargetColor = Color.Yellow
    };

public class MyColorizer : ISankeyColorizer {
    public event EventHandler ColorizerChanged;
    Random rand = new Random();
    Dictionary<string, Color> KeyColorPairs = new Dictionary<string, Color>();
    public Color LinkSourceColor { get; set; }
    public Color LinkTargetColor { get; set; }
    public Color GetLinkSourceColor(SankeyLink link) {
        return LinkSourceColor;
    }
    public Color GetLinkTargetColor(SankeyLink link) {
        return LinkTargetColor;
    }
    public Color GetNodeColor(SankeyNode info) {
        if (!KeyColorPairs.TryGetValue((string)info.Tag, out Color nodeColor)) {
            nodeColor = GenerateColor();
            KeyColorPairs.Add((string)info.Tag, nodeColor);
        }
        return nodeColor;
    }
    private Color GenerateColor() {
        return Color.FromArgb(rand.Next(256), rand.Next(256), rand.Next(256));
    }
}

Customize Tooltips

Tooltips are shown when the mouse pointer hovers over a node or link. Use the ToolTipEnabled and ToolTipController properties to disable/enable tooltips and customize their appearance. To format tooltip text, handle the CustomizeNodeToolTip and CustomizeLinkToolTip events and specify the CustomizeSankeyToolTipEventArgs.Title and CustomizeSankeyToolTipEventArgs.Text properties in event handlers.

The following code formats text used in tooltips. The e.Node.Tag, e.Link.Source.Tag, and e.Link.Target.Tag properties store values that are shown in default tooltip titles. To obtain node and link weights, use the e.Node.TotalWeight and e.Link.TotalWeight properties.

private void Form1_Load(object sender, EventArgs e) {
    sankeyDiagramControl1.ToolTipEnabled = DevExpress.Utils.DefaultBoolean.True;
    sankeyDiagramControl1.ToolTipController = new DevExpress.Utils.ToolTipController {
        ToolTipType = DevExpress.Utils.ToolTipType.Flyout,
        AllowHtmlText = true
    };
    sankeyDiagramControl1.CustomizeNodeToolTip += OnCustomizeNodeToolTip;
    sankeyDiagramControl1.CustomizeLinkToolTip += OnCustomizeLinkToolTip;
}
private void OnCustomizeNodeToolTip(object sender, CustomizeSankeyNodeToolTipEventArgs e) {
    e.Title = $"Country: <u>{e.Node.Tag}</u>";
    e.Text = $"{e.Node.TotalWeight:f1}";
}

private void OnCustomizeLinkToolTip(object sender, CustomizeSankeyLinkToolTipEventArgs e) {
    e.Title = $"{e.Link.Source.Tag} → {e.Link.Target.Tag}";
    e.Text = $"{e.Link.TotalWeight}";
}

To print the control, use one of the methods below:

The following methods allow you to export the control to various formats:

The code below sets the resulting Sankey diagram image's width to the document width and exports a Sankey diagram to a PDF file:

sankeyDiagramControl1.OptionsPrint.SizeMode = DevExpress.XtraCharts.Printing.PrintSizeMode.Zoom;
sankeyDiagramControl1.ExportToPdf("D://sankey.pdf");
