RibbonControl.EmptyAreaImageOptions Property

Provides access to options that specify a raster or vector image displayed in the ribbon’s empty area.

Namespace: DevExpress.XtraBars.Ribbon

Assembly: DevExpress.XtraBars.v21.1.dll

NuGet Packages: DevExpress.Win.Design, DevExpress.Win.Navigation

Declaration

C#

[DXCategory("Appearance")]
[XtraSerializableProperty]
public RibbonEmptyAreaImageOptions EmptyAreaImageOptions { get; }

VB.NET

<DXCategory("Appearance")>
<XtraSerializableProperty>
Public ReadOnly Property EmptyAreaImageOptions As RibbonEmptyAreaImageOptions

Property Value

Type	Description
RibbonEmptyAreaImageOptions	An object that contains image options.

Remarks

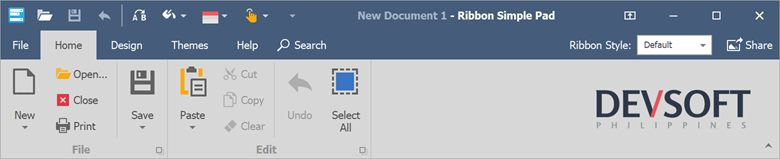

Use the EmptyAreaImageOptions property to specify a raster or vector image displayed in the ribbon’s empty area.

The following image options allow you to specify how the image is displayed in the empty area:

• ImageAlignment — specifies how the image is aligned in the empty area.
• ImagePadding — specifies the space between the image and the empty area’s edge.
• SizeMode — specifies whether the image is squeezed, stretched, zoomed, or displayed as is. Default is Squeeze.
