DataSourceWizardSettings.UseMergedConnectionTypePage Property

Specifies whether to use the merged wizard page that displays a flat list of all supported data sources and data providers.

Namespace: DevExpress.DataAccess.UI.Wizard

Assembly: DevExpress.DataAccess.v23.1.dll

NuGet Package: DevExpress.DataAccess

Declaration

C#

[DefaultValue(true)]
public bool UseMergedConnectionTypePage { get; set; }

VB.NET

<DefaultValue(True)>
Public Property UseMergedConnectionTypePage As Boolean

Property Value

Type	Default	Description
Boolean	true	true to use a unified page that displays data sources and providers; otherwise, false.

Property Paths

You can access this nested property as listed below:

Library	Object Type	Path to UseMergedConnectionTypePage
Cross-Platform Class Library	ChooseConnectionPage<TModel>	.DataSourceWizardSettings .UseMergedConnectionTypePage
	ConnectionPropertiesPage<TModel>	.DataSourceWizardSettings .UseMergedConnectionTypePage
WPF Controls	ReportDesignerBase	.DataSourceWizardSettings .UseMergedConnectionTypePage
.NET Reporting Tools	XRDesignMdiController	.DataSourceWizardSettings .UseMergedConnectionTypePage

Remarks

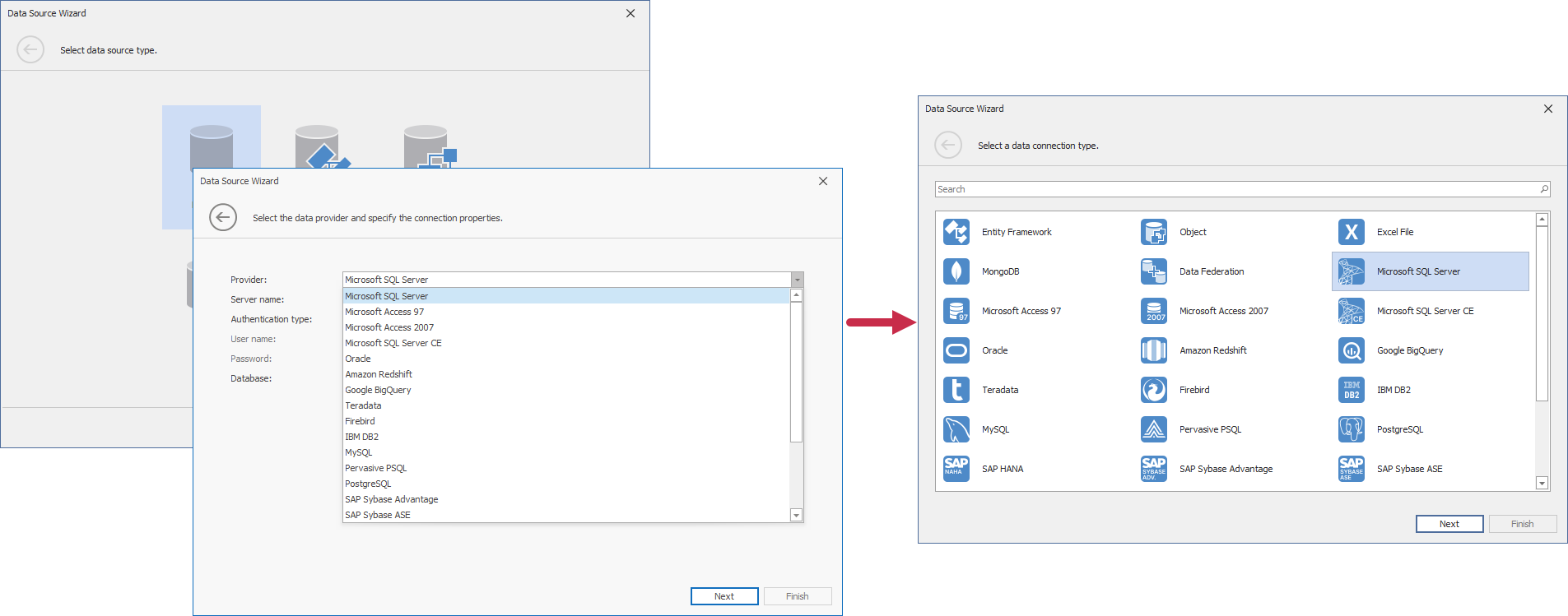

When UseMergedConnectionTypePage is true, pages that used to select the data source type and database provider are replaced with a single page that displays a flat list of all supported data sources:

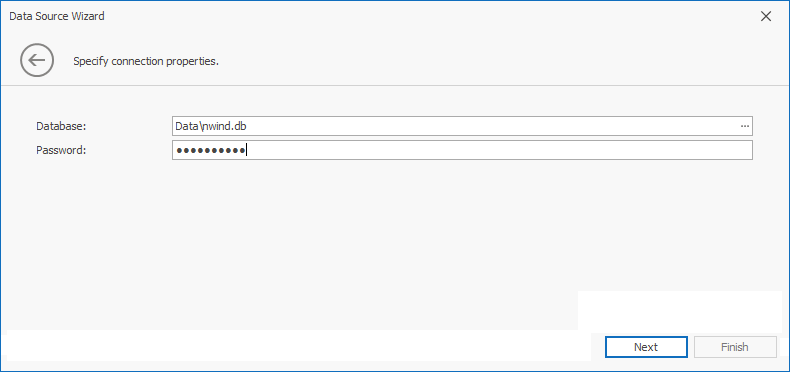

In this case, the next wizard page contains connection settings specific to the selected data connection type:

Set UseMergedConnectionTypePage to false to return to the previous wizard design.
