GeoUtils Class
Namespace: DevExpress.Xpf.Map
Assembly: DevExpress.Xpf.Map.v19.1.dll
Declaration
public static class GeoUtils

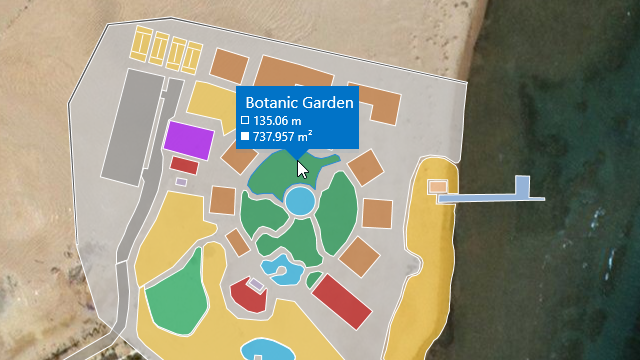

The GeoUtils class provides methods that allow you to calculate geometric values (for example, a shape perimeter or area) based on geographical coordinates.
The following list contains the main GeoUtils methods:
CalculateArea(MapShape) computes a map shape’s total area, in square meters.
private void MapControl_SelectionChanged(object sender, MapItemSelectionChangedEventArgs e) {
MapShape mapShape = vectorLayer.SelectedItems[0] as MapShape;
double areaByShape = GeoUtils.CalculateArea(mapShape) / 1000000;
label.Content = $"Shape Area: {areaByShape:F2} km²";
}
Private Sub MapControl_SelectionChanged(ByVal sender As Object, ByVal e As MapItemSelectionChangedEventArgs)
Dim mapShape As MapShape = CType(vectorLayer.SelectedItems(0),MapShape)
Dim areaByShape As Double = (GeoUtils.CalculateArea(mapShape) / 1000000)
label.Content = "Shape Area: {areaByShape:F2} km²"
End Sub
CalculateArea(IList<GeoPoint>) calculates an area of the region given by geographical points, in square meters.
double areaByPoints = GeoUtils.CalculateArea(new List<GeoPoint> {
new GeoPoint(41, -109),
new GeoPoint(41, -102),
new GeoPoint(37, -102),
new GeoPoint(37, -109)
});
Dim areaByPoints As Double = GeoUtils.CalculateArea(New List(Of GeoPoint) From {
New GeoPoint(41, -109),
New GeoPoint(41, -102),
New GeoPoint(37, -102),
New GeoPoint(37, -109)
})
CalculateBearing(GeoPoint, GeoPoint) computes an angle between the Geodetic North direction and a line given by two points, clockwise in degrees.
double bearing = GeoUtils.CalculateBearing(new GeoPoint(36.1, -115.1), new GeoPoint(35.9, -115.9));
Dim bearing As Double = GeoUtils.CalculateBearing(New GeoPoint(36.1, -115.1), New GeoPoint(35.9, -115.9))
CalculateCenter(GeoPoint, GeoPoint) finds a center point between two geographical points.
GeoPoint centerPoint = GeoUtils.CalculateCenter(
new GeoPoint(35.286, -111.1724),
new GeoPoint(38.3802, -110.9307));
Dim centerPoint As GeoPoint = GeoUtils.CalculateCenter(New GeoPoint(35.286, -111.1724), New GeoPoint(38.3802, -110.9307))
CalculateDistance(GeoPoint, GeoPoint) determines the distance between two geographical points, in meters.
double distance = GeoUtils.CalculateDistance(new GeoPoint(36.1, -115.1), new GeoPoint(34, -118.2));
Dim distance As Double = GeoUtils.CalculateDistance(New GeoPoint(36.1, -115.1), New GeoPoint(34, -118.2))
CalculateLength(IList<GeoPoint>) calculates the polyline length, in meters.
double lineLength = GeoUtils.CalculateLength(new List<GeoPoint> {
new GeoPoint(35.286, -111.1724),
new GeoPoint(38.3802, -110.9307),
new GeoPoint(36.9365, -102.493)
});
Dim lineLength As Double = GeoUtils.CalculateLength(New List(Of GeoPoint) From {
New GeoPoint(35.286, -111.1724),
New GeoPoint(38.3802, -110.9307),
New GeoPoint(36.9365, -102.493)
})
CalculateStrokeLength(MapShape) returns the map shape’s stroke length, in meters.
private void MapControl_SelectionChanged(object sender, MapItemSelectionChangedEventArgs e) {
MapShape mapShape = vectorLayer.SelectedItems[0] as MapShape;
double strokeLength = GeoUtils.CalculateStrokeLength(mapShape);
label.Content = $"StokeLength: {strokeLength / 1000:F2} km";
}
Private Sub MapControl_SelectionChanged(ByVal sender As Object, ByVal e As MapItemSelectionChangedEventArgs)
Dim mapShape As MapShape = CType(vectorLayer.SelectedItems(0),MapShape)
Dim strokeLength As Double = GeoUtils.CalculateStrokeLength(mapShape)
label.Content = "StokeLength: {strokeLength / 1000:F2} km"
End Sub
