DataViewBase.TotalSummaryPosition Property

Gets or sets the Summary Panel‘s position in a View. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v22.2.Core.dll

NuGet Package: DevExpress.Wpf.Grid.Core

Declaration

C#

public TotalSummaryPosition TotalSummaryPosition { get; set; }

VB.NET

Public Property TotalSummaryPosition As TotalSummaryPosition

Property Value

Type	Description
TotalSummaryPosition	The summary panel’s position in a view.

Available values:

Name	Description
None	The summary panel is hidden.
Top	The summary panel is displayed at the top of the view.
Bottom	The summary panel is displayed at the bottom of the view.

Remarks

The Summary Panel displays total summaries. The TotalSummaryPosition property specifies where to display the Summary Panel.

TableView

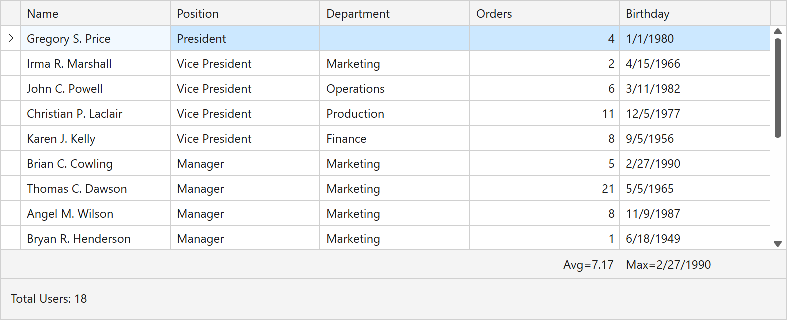

TotalSummaryPosition=”Bottom”

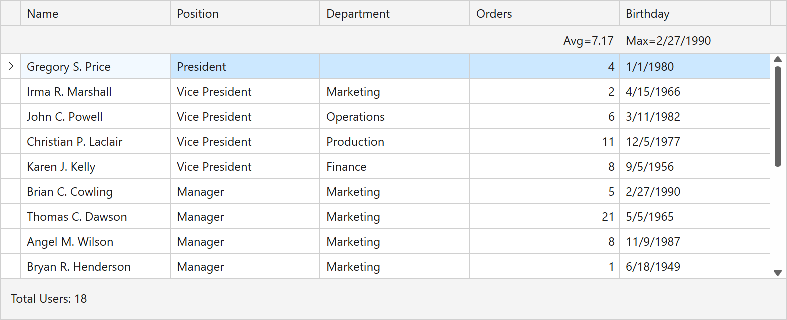

TotalSummaryPosition=”Top”

TreeListView

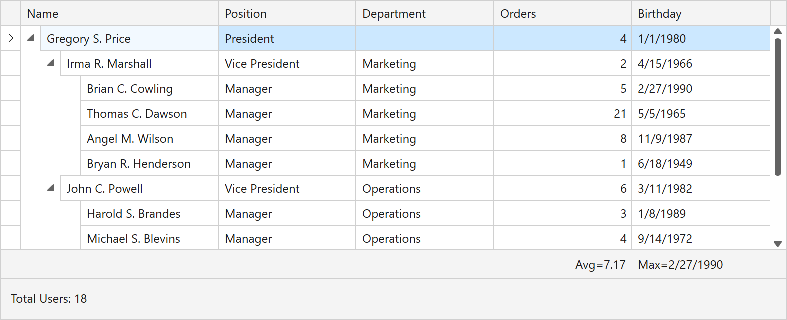

TotalSummaryPosition=”Bottom”

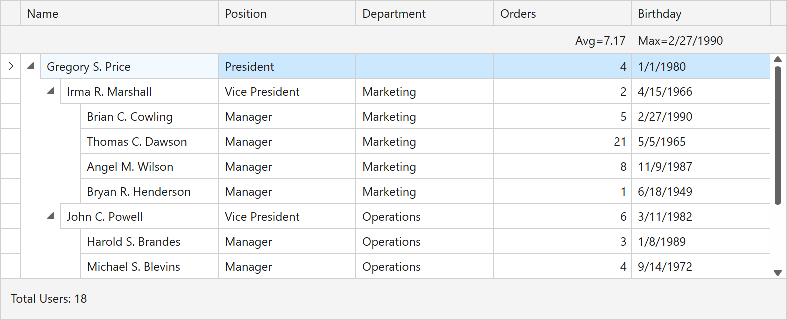

TotalSummaryPosition=”Top”

CardView

TotalSummaryPosition=”Bottom”

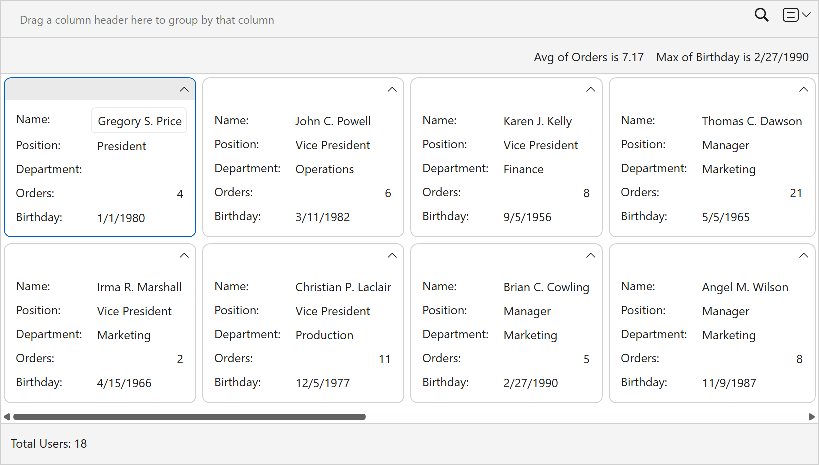

TotalSummaryPosition=”Top”

Refer to the following help topic for more information: Data Summaries.

Related GitHub Examples

The following code snippets (auto-collected from DevExpress Examples) contain references to the TotalSummaryPosition property.

Note

The algorithm used to collect these code examples remains a work in progress. Accordingly, the links and snippets below may produce inaccurate results. If you encounter an issue with code examples below, please use the feedback form on this page to report the issue.

XAML

wpf-data-grid-summarize-empty-cells/CS/CustomSummary_EmptyCells_CodeBehind/MainWindow.xaml#L19

                   NavigationStyle="Cell"
                   TotalSummaryPosition="Bottom" />
</dxg:GridControl.View>

how-to-display-total-summaries-e1636/CS/DXGrid_DisplayTotals/Window1.xaml#L15

<dxg:GridControl.View>
    <dxg:TableView AutoWidth="True" TotalSummaryPosition="Bottom" ShowFixedTotalSummary="True"/>
</dxg:GridControl.View>
