BaseColumn.IsEnabledBinding Property

Gets or sets the binding that determines a cell’s enabled state.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v20.2.Core.dll

Declaration

C#

[DefaultValue(null)]
public BindingBase IsEnabledBinding { get; set; }

VB.NET

<DefaultValue(Nothing)>
Public Property IsEnabledBinding As BindingBase

Property Value

Type	Default	Description
BindingBase	null	The binding that associates the enabled state of cells with a property in a data source.

Remarks

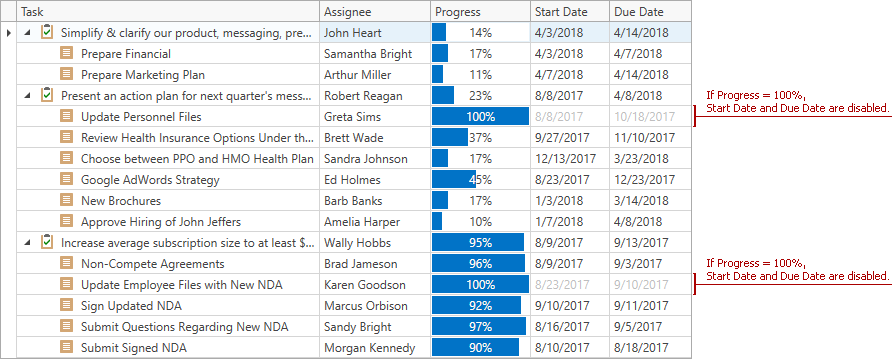

The code sample below disables cells in the Start Date and Due Date columns if the Progress value equals 100%:

View Example: Read-only and Enabled State Binding

Xaml

<dxg:TreeListControl x:Name="treeList"
                     ItemsSource="{Binding Path=EditableDataSource, Source={StaticResource employeeTasks}}">
    <dxg:TreeListControl.Columns>
        <dxg:TreeListColumn FieldName="Name" Header="Task"/>
        <dxg:TreeListColumn FieldName="Employee" Header="Assignee"/>
        <dxg:TreeListColumn FieldName="Status" Header="Progress"/>

        <dxg:TreeListColumn FieldName="StartDate"
                            IsEnabledBinding="{Binding IsCompleted, Converter={dx:BoolInverseConverter}}"/>
        <dxg:TreeListColumn FieldName="DueDate"
                            IsEnabledBinding="{Binding IsCompleted, Converter={dx:BoolInverseConverter}}"/>

    </dxg:TreeListControl.Columns>
    <dxg:TreeListControl.View>
        <dxg:TreeListView x:Name="view" KeyFieldName="ID" ParentFieldName="ParentID"/>
    </dxg:TreeListControl.View>
</dxg:TreeListControl>

C#

public class EmployeeTask: INotifyPropertyChanged {
    public int ID { get; set; }
    public int ParentID { get; set; }
    public string Name { get; set; }
    public string Employee { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }

    public bool IsCompleted { get { return Status == 100; } }
    int _status;
    public int Status {
        get { return _status; }
        set { _status = value; OnPropertyChanged(); OnPropertyChanged("IsCompleted"); }
    }

    // ...
}

VB.NET

Public Class EmployeeTask Inherits INotifyPropertyChanged
    Public Property ID As Integer
    Public Property ParentID As Integer
    Public Property Name As String
    Public Property Employee As String
    Public Property StartDate As DateTime
    Public Property DueDate As DateTime

    Public ReadOnly Property IsCompleted As Boolean
        Get
            Return Status = 100
        End Get
    End Property

    Private _status As Integer

    Public Property Status As Integer
        Get
            Return _status
        End Get
        Set(ByVal value As Integer)
            _status = value
            OnPropertyChanged()
            OnPropertyChanged("IsCompleted")
        End Set
    End Property

    ' ...
End Class

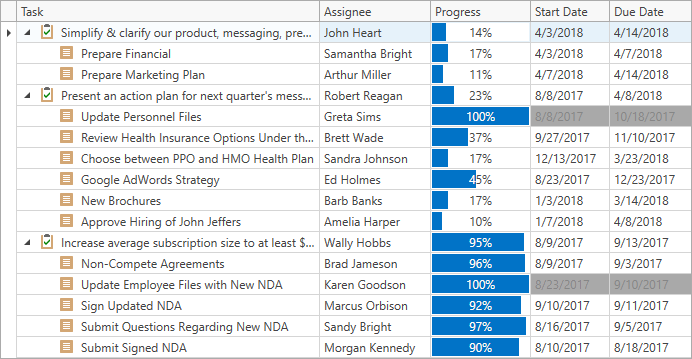

Customize Appearance Settings of Disabled Cells

To change the appearance settings of read-only cells, use the ColumnBase.CellStyle property with a trigger. Use the LightweightCellEditor as the style’s target type.

Xaml

<dxg:TreeListColumn.CellStyle>
    <Style TargetType="dxg:LightweightCellEditor">
        <Style.Triggers>
            <Trigger Property="IsEnabled" Value="False">
                <Setter Property="Background" Value="DarkGray" />
            </Trigger>
        </Style.Triggers>
    </Style>
</dxg:TreeListColumn.CellStyle>

Use the LightweightCellEditor.EditorOpacity property to change the opacity of the cell editor displayed in a disabled cell.



For more information, refer to Disable Editing.
