LinearScale Class

Assembly: DevExpress.Xpf.Gauges.v20.2.dll

NuGet Packages: DevExpress.WindowsDesktop.Wpf.Gauges, DevExpress.Wpf.Gauges

Declaration

C#
VB.NET

public class LinearScale :
    Scale

Public Class LinearScale
    Inherits Scale

The following members return LinearScale objects:

Remarks

This scale is used with the LinearGaugeControl. It is represented by an instance of the LinearScale class. It can be accessed as an item of the LinearScaleCollection object returned by the LinearGaugeControl.Scales property.

A Linear Scale consists of tickmarks, labels, custom labels, ranges, layers. It also uses the following value indicators: a level bar, markers and range bars.

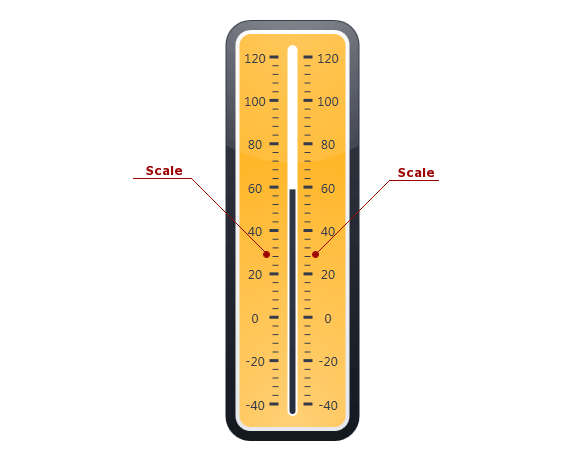

A typical Linear Scale is shown in the image below:

Linear Gauge_Scale

Example

This example illustrates how to create a LinearGaugeControl instance with two LinearScale objects.

View Example

MainWindow.xaml

<Window x:Class="DXGauges_Linear.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:dxga="http://schemas.devexpress.com/winfx/2008/xaml/gauges"
        Title="MainWindow" Height="450" Width="525">
    <Grid>
        <dxga:LinearGaugeControl  Name="linearGaugeControl1" Margin="0,24,0,20">
            <dxga:LinearGaugeControl.Model>
                <dxga:LinearRedThermometerModel/>
            </dxga:LinearGaugeControl.Model>
            <dxga:LinearGaugeControl.Scales>
                <dxga:LinearScale StartValue="-40" EndValue="120"
                                  MajorIntervalCount="8"  Width="60">
                    <dxga:LinearScale.Ranges>
                        <dxga:LinearScaleRange EndValue="32" StartValue="-40">
                            <dxga:LinearScaleRange.Presentation>
                                <dxga:DefaultLinearScaleRangePresentation Fill="LightBlue" />
                            </dxga:LinearScaleRange.Presentation>
                        </dxga:LinearScaleRange>
                        <dxga:LinearScaleRange EndValue="120" StartValue="32">
                            <dxga:LinearScaleRange.Presentation>
                                <dxga:DefaultLinearScaleRangePresentation Fill="Tomato" />
                            </dxga:LinearScaleRange.Presentation>
                        </dxga:LinearScaleRange>
                    </dxga:LinearScale.Ranges>
                    <dxga:LinearScale.CustomLabels>
                        <dxga:ScaleCustomLabel Content="°F" Offset="-45" Value="-45" />
                    </dxga:LinearScale.CustomLabels>
                    <dxga:LinearScale.Layers>
                        <dxga:LinearScaleLayer/>
                    </dxga:LinearScale.Layers>
                    <dxga:LinearScale.LevelBars>
                        <dxga:LinearScaleLevelBar Value="59" />
                    </dxga:LinearScale.LevelBars>
                </dxga:LinearScale>
                <dxga:LinearScale StartValue="-40" EndValue="120"
                                  MajorIntervalCount="8" Margin="68,0,0,0" >
                    <dxga:LinearScale.Ranges>
                        <dxga:LinearScaleRange StartValue="-40" EndValue="32" >
                            <dxga:LinearScaleRange.Presentation>
                                <dxga:DefaultLinearScaleRangePresentation Fill="LightBlue" />
                            </dxga:LinearScaleRange.Presentation>
                        </dxga:LinearScaleRange>
                        <dxga:LinearScaleRange StartValue="32" EndValue="120" >
                            <dxga:LinearScaleRange.Presentation>
                                <dxga:DefaultLinearScaleRangePresentation Fill="Tomato" />
                            </dxga:LinearScaleRange.Presentation>
                        </dxga:LinearScaleRange>
                    </dxga:LinearScale.Ranges>
                    <dxga:LinearScale.Markers>
                        <dxga:LinearScaleMarker Value="68" />
                    </dxga:LinearScale.Markers>
                    <dxga:LinearScale.CustomLabels>
                        <dxga:ScaleCustomLabel Content="°F" Offset="-7" Value="-45" />
                    </dxga:LinearScale.CustomLabels>
                    <dxga:LinearScale.LabelOptions>
                        <dxga:LinearScaleLabelOptions Offset="3" />
                    </dxga:LinearScale.LabelOptions>
                    <dxga:LinearScale.MinorTickmarkOptions>
                        <dxga:MinorTickmarkOptions Offset="-16" />
                    </dxga:LinearScale.MinorTickmarkOptions>
                </dxga:LinearScale>
            </dxga:LinearGaugeControl.Scales>
        </dxga:LinearGaugeControl>
    </Grid>
</Window>

The following code snippet (auto-collected from DevExpress Examples) contains a reference to the LinearScale class.

Note

The algorithm used to collect these code examples remains a work in progress. Accordingly, the links and snippets below may produce inaccurate results. If you encounter an issue with code examples below, please use the feedback form on this page to report the issue.

XAML

pivotgridcontrol-and-gaugecontrol-integration-e3332/CS/PivotGauges/MainWindow.xaml#L46

<dxga:LinearGaugeControl.Scales>
    <dxga:LinearScale StartValue="{Binding MinValue}" EndValue="{Binding MaxValue}" >
        <dxga:LinearScale.CustomLabels>
