Organize Pages
- 5 minutes to read
The PDF Document API allows you to add, remove, and customize pages. Refer to the following sections to review available API members:
- Add a new page
- Copy pages from one document to another
- Render new page with graphics
- Rotate and resize a page
- Transform page content
- Delete a page
Basic API: Load and Save Files, Access Document and Pages
The table below lists API used to load documents to the PdfDocumentProcessor, access the document and its pages, and save the result.
| Method | Description |
|---|---|
| PdfDocumentProcessor.LoadDocument | Loads a document into the PDF Document API component. |
| PdfDocumentProcessor.Document | Obtains the document. |
| PdfDocument.Pages | Retrieves document pages. You can get a specific page by its index. |
| PdfDocumentProcessor.SaveDocument | Saves the result. |
Add a New Page
Use the following API to append or insert a new page:
| Method | Description |
|---|---|
| PdfDocumentProcessor.AddNewPage | Appends an empty page. |
| PdfDocumentProcessor.InsertNewPage | Inserts a page at a specified position (page number). |
The following code adds a new page to a document:
using DevExpress.Pdf;
using (PdfDocumentProcessor processor = new PdfDocumentProcessor())
{
processor.LoadDocument("..\\..\\Document.pdf");
processor.AddNewPage(PdfPaperSize.A4);
processor.SaveDocument("..\\..\\Result.pdf");
}
Copy Pages from One Document to Another
Use the PdfDocument.Pages property to retrieve an IList<PdfPage> object. The IList<T>.Insert(Int32, T) method allows you to add an extracted page to another PDF file.
The code sample below copies a page from one PDF document to another.
using DevExpress.Pdf;
using (PdfDocumentProcessor source = new PdfDocumentProcessor())
{
source.LoadDocument("..\\..\\Document1.pdf");
using (PdfDocumentProcessor target = new PdfDocumentProcessor())
{
target.LoadDocument("..\\..\\Document2.pdf");
target.Document.Pages.Insert(3, source.Document.Pages[0]);
target.SaveDocument("..\\..\\Result.pdf");
}
}
Render New Page with Graphics
The PdfDocumentProcessor.RenderNewPage method allows you to render a new page with graphics.
Call the PdfGraphics.AddToPageForeground or PdfGraphics.AddToPageBackground method to add graphics content (for example, an image or string) to an existing page’s foreground/background.
Add a reference to the DevExpress.Pdf.Drawing.v20.2 assembly to access the PdfGraphics class. Refer to the following article for more information about PDF graphics: PDF Graphics.
Rotate and Resize a Page
Rotate a Page

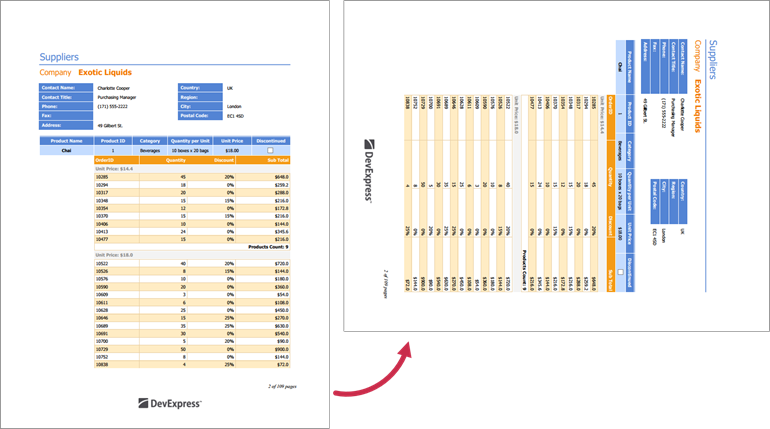

The Rotate property specifies the page’s rotation angle.
The code sample below rotates all document pages.
using DevExpress.Pdf;
using (PdfDocumentProcessor pdfDocumentProcessor = new PdfDocumentProcessor())
{
pdfDocumentProcessor.LoadDocument("..\\..\\docs\\TextRotate.pdf");
int angle = 0;
foreach (PdfPage page in pdfDocumentProcessor.Document.Pages)
{
angle = (angle + 90) % 360;
page.Rotate = angle;
}
pdfDocumentProcessor.SaveDocument("..\\..\\docs\\Rotated.pdf");
}
Resize a Page

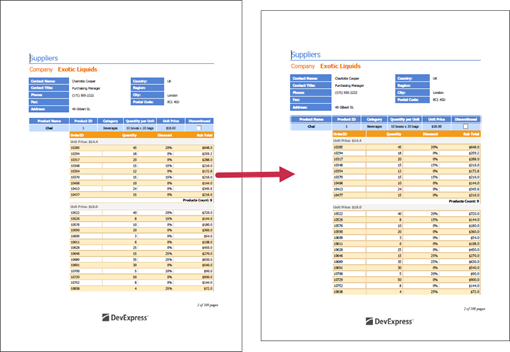

Call the PdfPage.Resize method to resize a page. The page content retains its aspect ratio.
The code sample below shows how to resize a page:
using (PdfDocumentProcessor processor = new PdfDocumentProcessor())
{
processor.LoadDocument(@"Document.pdf");
PdfPage page = processor.Document.Pages[0];
page.Resize(PdfPaperSize.Letter, PdfContentHorizontalAlignment.Center,
PdfContentVerticalAlignment.Center);
processor.SaveDocument("out2.pdf");
}
Page Content Transformations
Scale and Flip Content

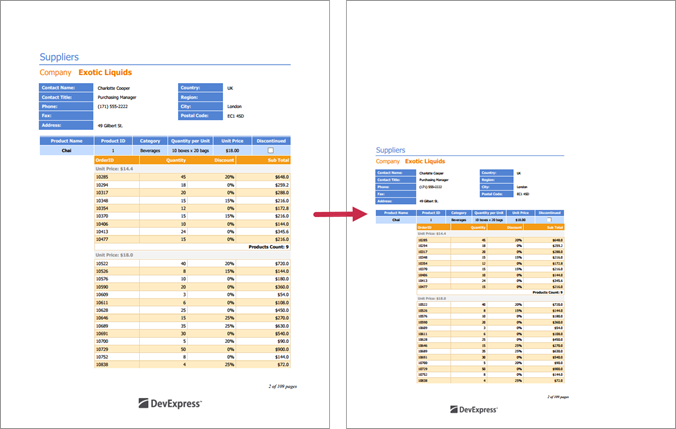

Use the PdfPage.ScaleContent method to scale the page content. Specify the horizontal and vertical scale factors as parameters (1 is 100%). To flip content horizontally or vertically, use a negative value.
The code sample below scales the content to 75%:
using (PdfDocumentProcessor processor = new PdfDocumentProcessor())
{
processor.LoadDocument(@"Document.pdf");
PdfPage page = processor.Document.Pages[0];
page.ScaleContent(0.75,0.75);
processor.SaveDocument("result.pdf");
}
Rotate Content

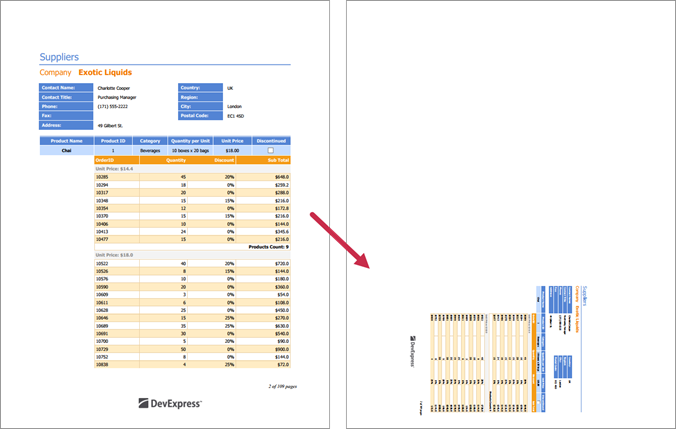

The PdfPage.RotateContent method rotates page content relative to the specified point. The operation does not affect annotations.
The code sample below rotates the first page’s content:
using (PdfDocumentProcessor processor = new PdfDocumentProcessor())
{
processor.LoadDocument(@"Document.pdf");
PdfPage page = processor.Document.Pages[0];
// Scale content to fit it
// on the first page after rotation
page.ScaleContent(0.5, 0.5);
page.RotateContent(200,100, 270);
processor.SaveDocument("result.pdf");
}
Specify the Content Offset

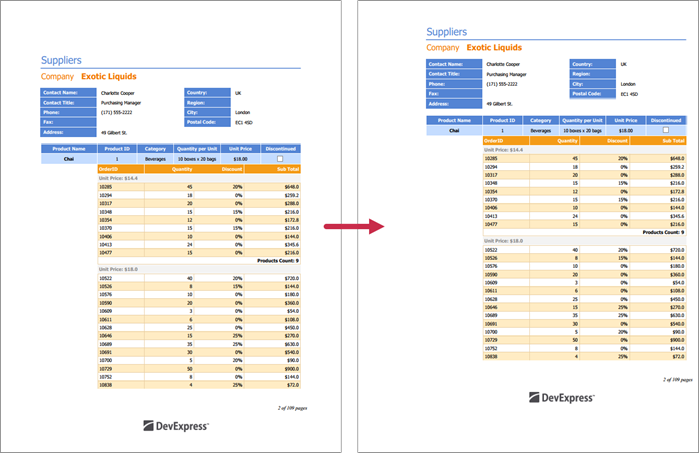

Call the PdfPage.OffsetContent method to specify the content offset. The page retains its size.
The code sample below specifies the content offset:
using DevExpress.Pdf;
using (PdfDocumentProcessor processor = new PdfDocumentProcessor())
{
processor.LoadDocument(@"Document.pdf");
PdfPage page = processor.Document.Pages[0];
page.OffsetContent(50, 50);
processor.SaveDocument("result.pdf");
}
Delete a Page
To delete a page from a multi-page document, call the PdfDocumentProcessor.DeletePage method with the specified page number.
The code sample below deletes odd-numbered pages in a document, starting with the last odd-numbered page.
using DevExpress.Pdf;
using (PdfDocumentProcessor pdfDocumentProcessor = new PdfDocumentProcessor())
{
pdfDocumentProcessor.LoadDocument("..\\..\\docs\\TextDelete.pdf");
for (int i = pdfDocumentProcessor.Document.Pages.Count; i > 0; i--)
if (i % 2 != 0)
{
pdfDocumentProcessor.DeletePage(i);
}
pdfDocumentProcessor.SaveDocument("..\\..\\docs\\Deleted.pdf");
}
