SplineAlgorithm Enum

Lists values that specify the default drawing algorithm of the Spline series view.

Namespace: DevExpress.XtraCharts

Assembly: DevExpress.XtraCharts.v23.1.dll

NuGet Package: DevExpress.Charts

Declaration

C#

[ResourceFinder(typeof(XtraChartsResFinder))]
public enum SplineAlgorithm

VB.NET

<ResourceFinder(GetType(XtraChartsResFinder))>
Public Enum SplineAlgorithm

Members

Name	Description
StrictMinMax	The spline line strictly stays between local minimum and maximum values
Cardinal	The spline line goes beyond local extrema.

Related API Members

The following properties accept/return SplineAlgorithm values:

Show 16 items

Library	Related API Members
Cross-Platform Class Library	FullStackedSplineArea3DSeriesView.SplineAlgorithm
	FullStackedSplineAreaSeriesView.SplineAlgorithm
	Spline3DSeriesView.SplineAlgorithm
	SplineArea3DSeriesView.SplineAlgorithm
	SplineAreaSeriesView.SplineAlgorithm
	SplineSeriesView.SplineAlgorithm
	StackedSplineArea3DSeriesView.SplineAlgorithm
	StackedSplineAreaSeriesView.SplineAlgorithm
WinForms Controls	FullStackedSplineArea3DSeriesViewModel.SplineAlgorithm
	FullStackedSplineAreaSeriesViewModel.SplineAlgorithm
	Spline3DSeriesViewModel.SplineAlgorithm
	SplineArea3DSeriesViewModel.SplineAlgorithm
	SplineAreaSeriesViewModel.SplineAlgorithm
	SplineSeriesViewModel.SplineAlgorithm
	StackedSplineArea3DSeriesViewModel.SplineAlgorithm
	StackedSplineAreaSeriesViewModel.SplineAlgorithm

Remarks

You can specify the following values:

Cardinal

The drawing algorithm goes beyond local extrema so the spline line continues its path beyond the minimum and maximum values.

StrictMinMax

The default algorithm. The line strictly stays between local minimum and maximum values.

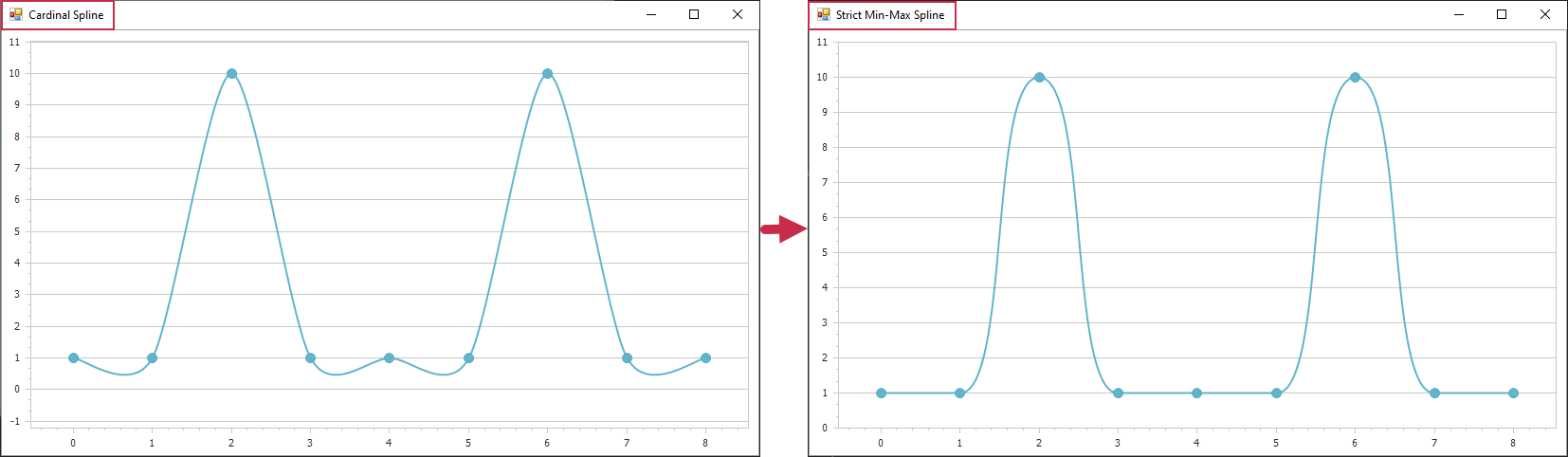

The following image illustrates the difference between two algorithms:
