AxisLabel2D.Alignment Property
Gets or sets the axis label alignment.
Namespace: DevExpress.XtraCharts
Assembly: DevExpress.XtraCharts.v19.1.dll
Declaration
[XtraChartsLocalizableCategory(XtraChartsCategory.Behavior)]
[XtraSerializableProperty]
public AxisLabelAlignment Alignment { get; set; }Property Value
| Type | Description |
|---|---|
| AxisLabelAlignment | The value that specifies the label alignment. |
Available values:
| Name | Description |
|---|---|
| Auto | The label alignment depends on the Axis2D.Alignment property value. |
| Center | Axis labels are centered with major tickmarks. |
| Far | Axis labels are displayed at the major tickmark right or top side in depending on axis type and orientation. |
| Near | Axis labels are displayed at the major tickmark left or bottom side in depending on axis type and orientation. |
Remarks
The following label alignments are available:
| Alignment | Example |
|---|---|

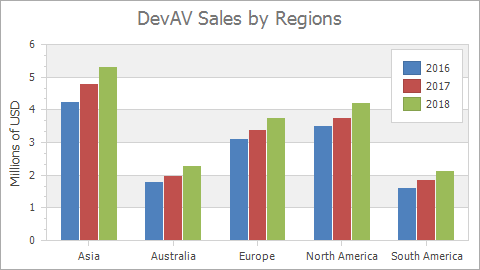

| AxisLabelAlignment.Center |  |

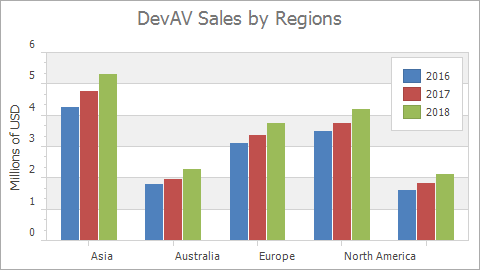

| AxisLabelAlignment.Far |  |

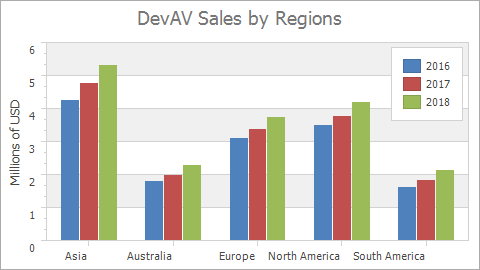

| AxisLabelAlignment.Near |  |
| AxisLabelAlignment.Auto | The axis label alignment depends on the Axis2D.LabelPosition property value. |
Example

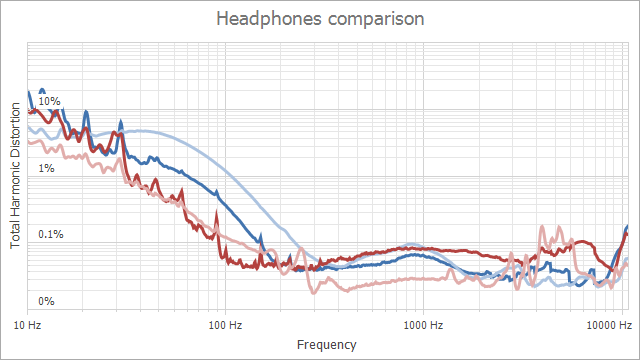

This example configures the axis label and axis title appearance.
The following code configures options of a y-axis to resemble to its appearance in the image above:
XYDiagram diagram = chartControl.Diagram as XYDiagram;
diagram.AxisY.Title.Position = AxisTitlePosition.Outside;
diagram.AxisY.Title.Text = "Total Harmonic Distortion";
diagram.AxisY.Title.Alignment = System.Drawing.StringAlignment.Center;
diagram.AxisY.Label.Alignment = AxisLabelAlignment.Far;
diagram.AxisY.LabelPosition = AxisLabelPosition.Inside;
diagram.AxisY.Label.TextPattern = "{V:0.##}%";
diagram.AxisY.Alignment = AxisAlignment.Near;
The following table lists the API members the code above uses:
| Member | Description |
|---|---|
| AxisTitle.Position | Gets or sets the axis title position. |
| Title.Text | Gets or sets the title’s text. |
| AxisTitle.Alignment | Gets or sets the alignment of the axis title. |
AxisLabel2D.Alignment |
Gets or sets the axis label alignment. |
| Axis2D.LabelPosition | Gets or sets the axis label position. |
| AxisLabel.TextPattern | Gets or sets a string that formats text for the auto-generated x- or y-axis labels. |
| Axis2D.Alignment | Specifies the position of an axis relative to another primary axis. |
