Axis2D.Alignment Property

Specifies the position of an axis relative to another primary axis.

Namespace: DevExpress.XtraCharts

Assembly: DevExpress.XtraCharts.v19.1.dll

Declaration

C#

[XtraChartsLocalizableCategory(XtraChartsCategory.Behavior)]
[XtraSerializableProperty]
public AxisAlignment Alignment { get; set; }

VB.NET

<XtraChartsLocalizableCategory(XtraChartsCategory.Behavior)>
<XtraSerializableProperty>
Public Property Alignment As AxisAlignment

Property Value

Type	Description
AxisAlignment	An AxisAlignment enumeration value which specifies the relative position of the current axis.

Available values:

Name	Description
Near	An axis is displayed at the left or bottom side of the diagram, depending on its type and orientation.
Far	An axis is displayed at the right or top side of the diagram, depending on its type and orientation.
Zero	An axis intercepts another primary axis at the zero level. This alignment type is applicable to primary axes only. In this mode, an axis title and labels are shown within the pane. For an axis of (Y) values, the zero level is its zero line. For an axis of (X) arguments, the zero level depends upon a series’ SeriesBase.ScaleType property value: - for the ScaleType.Qualitative scale, the zero level is specified by the first point’s argument, - for the ScaleType.Numerical scale, the zero level equals the zero value, - for the ScaleType.DateTime scale, the zero level is equal to the earliest date.
Center	The axis is positioned in the center of chart plot area. This alignment type is applicable to primary axes only. In this mode, an axis title and labels are shown within the pane.

Remarks

You can use the following alignments to specify the Alignment property:

Alignment	The example image

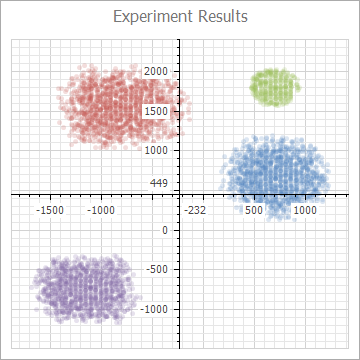

Center

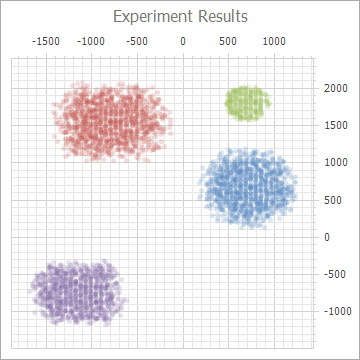

Far

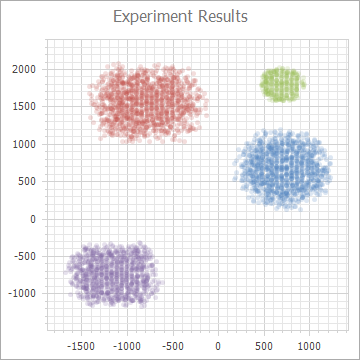

Near

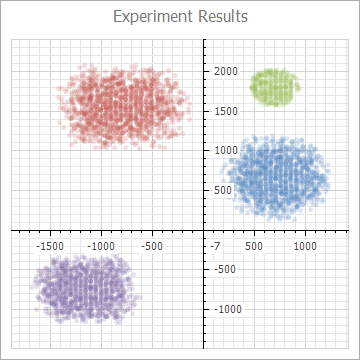

Zero

Example

This example configures the axis label and axis title appearance.

The following code configures options of a y-axis to resemble to its appearance in the image above:

C#

XYDiagram diagram = chartControl.Diagram as XYDiagram;
diagram.AxisY.Title.Position = AxisTitlePosition.Outside;
diagram.AxisY.Title.Text = "Total Harmonic Distortion";
diagram.AxisY.Title.Alignment = System.Drawing.StringAlignment.Center;
diagram.AxisY.Label.Alignment = AxisLabelAlignment.Far;
diagram.AxisY.LabelPosition = AxisLabelPosition.Inside;
diagram.AxisY.Label.TextPattern = "{V:0.##}%";
diagram.AxisY.Alignment = AxisAlignment.Near;

VB.NET

Dim diagram As XYDiagram = CType(chartControl.Diagram,XYDiagram)
diagram.AxisY.Title.Position = AxisTitlePosition.Outside
diagram.AxisY.Title.Text = "Total Harmonic Distortion"
diagram.AxisY.Title.Alignment = System.Drawing.StringAlignment.Center
diagram.AxisY.Label.Alignment = AxisLabelAlignment.Far
diagram.AxisY.LabelPosition = AxisLabelPosition.Inside
diagram.AxisY.Label.TextPattern = "{V:0.##}%"
diagram.AxisY.Alignment = AxisAlignment.Near

The following table lists the API members the code above uses:

Member	Description
AxisTitle.Position	Gets or sets the axis title position.
Title.Text	Gets or sets the title’s text.
AxisTitle.Alignment	Gets or sets the alignment of the axis title.
AxisLabel2D.Alignment	Gets or sets the axis label alignment.
Axis2D.LabelPosition	Gets or sets the axis label position.
AxisLabel.TextPattern	Gets or sets a string that formats text for the auto-generated x- or y-axis labels.
Axis2D.Alignment	Specifies the position of an axis relative to another primary axis.

Related GitHub Examples

The following code snippet (auto-collected from DevExpress Examples) contains a reference to the Alignment property.

Note

The algorithm used to collect these code examples remains a work in progress. Accordingly, the links and snippets below may produce inaccurate results. If you encounter an issue with code examples below, please use the feedback form on this page to report the issue.

C#

how-to-change-the-series-line-color-when-the-value-is-under-a-predefined-level-e462/CS/Form1.cs#L33

    series.Label.TextPattern = "{V:N2}";
    (chartControl1.Diagram as XYDiagram).AxisX.Alignment = AxisAlignment.Zero;
}

VB.NET

how-to-change-the-series-line-color-when-the-value-is-under-a-predefined-level-e462/VB/Form1.vb#L35

    series.Label.TextPattern = "{V:N2}"
    TryCast(chartControl1.Diagram, XYDiagram).AxisX.Alignment = AxisAlignment.Zero
End Sub
