DxComboBoxSettings Class

Contains settings of an auto-generated combo box editor.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v23.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public class DxComboBoxSettings :
    DxDropDownEditSettings,
    IComboBoxSettings,
    IDropDownEditSettings,
    IButtonEditSettings,
    ITextEditSettings,
    IEditSettings

Remarks

The Grid component automatically generates editors for columns based on associated data types. For the enum type, the Grid generates a combo box editor.

You can replace the default editor of any column with a combo box. Refer to the following section for more information: Change a Column Editor to Combo Box.

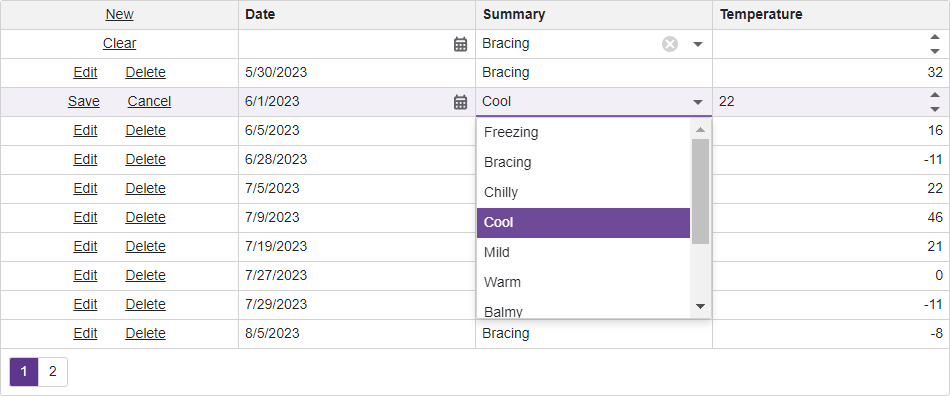

Auto-Generated Combo Box in Edit Row and Filter Row

The Grid component automatically displays column editors in edit row and filter row. In the code sample below, the Grid displays a combo box editor for the Summary column (enumerator data type):

Razor

@inject IDbContextFactory<NorthwindContext> NorthwindContextFactory

<DxGrid Data="@forecasts"
        ShowFilterRow="true"
        EditMode="GridEditMode.EditRow"
        EditorRenderMode="GridEditorRenderMode.Integrated"
        CssClass="my-class">
    <Columns>
        <DxGridCommandColumn />
        <DxGridDataColumn FieldName="Date" />
        <DxGridDataColumn FieldName="Summary" />
        <DxGridDataColumn Caption="Temperature" FieldName="TemperatureC" />
    </Columns>
</DxGrid>

@code {
    private WeatherForecast[]? forecasts;

    protected override async Task OnInitializedAsync() {
        forecasts = await ForecastService.GetForecastAsync(DateTime.Now);
    }
}

WeatherForecastService.cs

public class WeatherForecastService {

    public enum Summaries {
        Freezing, Bracing, Chilly, Cool, Mild, Warm, Balmy, Hot, Sweltering, Scorching};

    public Task<WeatherForecast[]> GetForecastAsync(DateTime startDate) {
        var rng = new Random();
        return Task.FromResult(Enumerable.Range(1, 100).Select(index => new WeatherForecast {
            Date = startDate.AddDays(index),
            TemperatureC = rng.Next(-20, 55),
            Summary = (Summaries)rng.Next(Enum.GetNames(typeof(Summaries)).Length)
        }).ToArray());
    }
}

WeatherForecast.cs

public class WeatherForecast {
    public DateTime Date { get; set; }
    public int TemperatureC { get; set; }
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
    public Summaries Summary { get; set; }
}

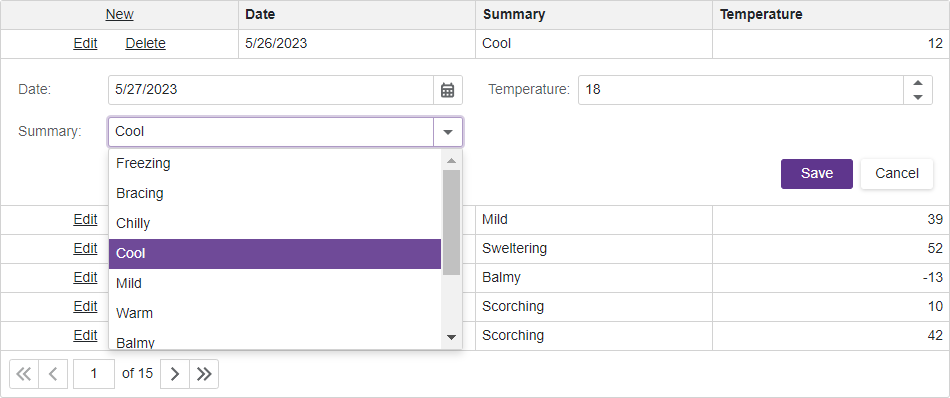

Auto-Generated Combo Box in Edit Forms

The edit form or pop-up edit form can also display auto-generated editors. To place an editor in a form, add a GetEditor(String) method to an EditFormTemplate.

In the code sample below, the Grid displays an auto-generated combo box editor for the Summary column:

@inject IDbContextFactory<NorthwindContext> NorthwindContextFactory

<DxGrid Data="@forecasts"
    PageSize="7">
    <Columns>
        <DxGridCommandColumn />
        <DxGridDataColumn FieldName="Date" />
        <DxGridDataColumn FieldName="Summary" />
        <DxGridDataColumn Caption="Temperature" FieldName="TemperatureC" />
    </Columns>
    <EditFormTemplate Context="editFormContext">
        <DxFormLayout>
            <DxFormLayoutItem Caption="Date:">
                @editFormContext.GetEditor("Date")
            </DxFormLayoutItem>
            <DxFormLayoutItem Caption="Temperature:">
                @editFormContext.GetEditor("TemperatureC")
            </DxFormLayoutItem>
            <DxFormLayoutItem Caption="Summary:" >
                @editFormContext.GetEditor("Summary")
            </DxFormLayoutItem>
        </DxFormLayout>
    </EditFormTemplate>
</DxGrid>

@code {
    private WeatherForecast[]? forecasts;

    protected override async Task OnInitializedAsync() {
        forecasts = await ForecastService.GetForecastAsync(DateTime.Now);
    }
}

Change a Column Editor to Combo Box

Follow the steps below to replace a column’s default editor with a combo box:

1. Add DxComboBoxSettings in the column’s EditSettings property.
2. Specify the Data combo box setting to bind the editor to a data source.
3. If the data source contains complex data, specify ValueFieldName and TextFieldName settings to supply combo box items with values and the corresponding display text strings.

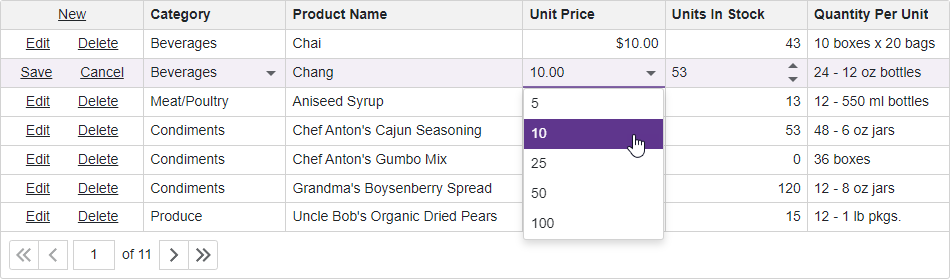

The code sample below replaces the default editors of Category and Unit Price columns with combo boxes:

Razor

@inject IDbContextFactory<NorthwindContext> NorthwindContextFactory

<DxGrid Data="Products"
        EditMode="GridEditMode.EditRow"
        EditorRenderMode="GridEditorRenderMode.Integrated">
    <Columns>
        <DxGridCommandColumn />
        <DxGridDataColumn FieldName="CategoryId" Caption="Category">
            <EditSettings>
                <DxComboBoxSettings Data="Categories"
                                    ValueFieldName="CategoryId"
                                    TextFieldName="CategoryName"/>
            </EditSettings>
        </DxGridDataColumn>
        <DxGridDataColumn FieldName="ProductName" />
        <DxGridDataColumn FieldName="UnitPrice">
            <EditSettings>
                <DxComboBoxSettings Data="Prices" DisplayFormat="C" EditFormat="F" />
            </EditSettings>
        </DxGridDataColumn>
        <DxGridDataColumn FieldName="UnitsInStock" />
        <DxGridDataColumn FieldName="QuantityPerUnit" />
    </Columns>
</DxGrid>
@code {
    NorthwindContext Northwind { get; set; }
    List<Product> Products { get; set; }
    List<Category> Categories { get; set; }
    List<decimal?> Prices = new List<decimal?>() { 5, 10, 25, 50, 100};

    protected override async Task OnInitializedAsync() {
        Northwind = NorthwindContextFactory.CreateDbContext();
        Products = await Northwind.Products.ToListAsync();
        Categories = await Northwind.Categories.ToListAsync();
    }

    public void Dispose() {
        Northwind?.Dispose();
    }
}

NorthwindContext

using Microsoft.EntityFrameworkCore;
#nullable disable

namespace Grid.Northwind {
    public partial class NorthwindContext : DbContext {

        public NorthwindContext(DbContextOptions<NorthwindContext> options)
            : base(options) {
        }
        // ...
        public virtual DbSet<Category> Categories { get; set; }
        public virtual DbSet<Product> Products { get; set; }
        // ...
        protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder) {
            if(!optionsBuilder.IsConfigured) {
                optionsBuilder.UseSqlServer("Server=.\\sqlexpress;Database=Northwind;Integrated Security=true");
            }
        }

        protected override void OnModelCreating(ModelBuilder modelBuilder) {
            modelBuilder.HasAnnotation("Relational:Collation", "SQL_Latin1_General_CP1_CI_AS");
            // ...
            modelBuilder.Entity<Category>(entity => {
                entity.HasIndex(e => e.CategoryName, "CategoryName");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.CategoryName)
                    .IsRequired()
                    .HasMaxLength(15);
                entity.Property(e => e.Description).HasColumnType("ntext");
                entity.Property(e => e.Picture).HasColumnType("image");
            });
            modelBuilder.Entity<Product>(entity => {
                entity.HasIndex(e => e.CategoryId, "CategoriesProducts");
                entity.HasIndex(e => e.CategoryId, "CategoryID");
                entity.HasIndex(e => e.ProductName, "ProductName");
                entity.HasIndex(e => e.SupplierId, "SupplierID");
                entity.HasIndex(e => e.SupplierId, "SuppliersProducts");
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.ProductName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.QuantityPerUnit).HasMaxLength(20);
                entity.Property(e => e.ReorderLevel).HasDefaultValueSql("((0))");
                entity.Property(e => e.SupplierId).HasColumnName("SupplierID");
                entity.Property(e => e.UnitPrice)
                    .HasColumnType("money")
                    .HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsInStock).HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsOnOrder).HasDefaultValueSql("((0))");
                entity.HasOne(d => d.Category)
                    .WithMany(p => p.Products)
                    .HasForeignKey(d => d.CategoryId)
                    .HasConstraintName("FK_Products_Categories");
            });
            // ...
            OnModelCreatingPartial(modelBuilder);
        }

        partial void OnModelCreatingPartial(ModelBuilder modelBuilder);
    }
}

Product.cs

public partial class Product {
    public Product() {
        OrderDetails = new HashSet<OrderDetail>();
    }

    public int ProductId { get; set; }
    public string ProductName { get; set; }
    public int? SupplierId { get; set; }
    public int? CategoryId { get; set; }
    public string QuantityPerUnit { get; set; }
    public decimal? UnitPrice { get; set; }
    public short? UnitsInStock { get; set; }
    public short? UnitsOnOrder { get; set; }
    public short? ReorderLevel { get; set; }
    public bool Discontinued { get; set; }

    public virtual Category Category { get; set; }
}

Category.cs

public partial class Category {
    public Category() {
        Products = new HashSet<Product>();
    }

    public int CategoryId { get; set; }
    public string CategoryName { get; set; }
    public string Description { get; set; }
    public byte[] Picture { get; set; }

    public virtual ICollection<Product> Products { get; set; }
}

Runtime Customization

At runtime, call the GetColumnEditSettings<T>(String) method to access settings of a combo box editor in the specified column. The example below demonstrates how to dynamically disable the editor.

<DxGrid @ref="Grid"
        Data="Products"
        EditMode="GridEditMode.EditRow"
        EditorRenderMode="GridEditorRenderMode.Integrated">
    <Columns>
        <DxGridCommandColumn />
        <DxGridDataColumn FieldName="CategoryId" Caption="Category">
            <EditSettings>
                <DxComboBoxSettings Data="Categories"
                                    ValueFieldName="CategoryId"
                                    TextFieldName="CategoryName"/>
            </EditSettings>
        </DxGridDataColumn>
        <DxGridDataColumn FieldName="ProductName" />
        <DxGridDataColumn FieldName="UnitPrice" />
        <DxGridDataColumn FieldName="UnitsInStock" />
        <DxGridDataColumn FieldName="QuantityPerUnit" />
    </Columns>
</DxGrid>
<DxButton Text="Disable the Category" Click="Button_Click" />

@code {
    IGrid Grid { get; set; }
    NorthwindContext Northwind { get; set; }
    List<Product> Products { get; set; }
    List<Category> Categories { get; set; }

    void Button_Click() {
        var comboBoxSettings = Grid.GetColumnEditSettings<IComboBoxSettings>("CategoryId");
        if(comboBoxSettings != null){
            Grid.BeginUpdate();
            comboBoxSettings.Enabled = false;
            Grid.EndUpdate();
        }
    }

    protected override async Task OnInitializedAsync() {
        Northwind = NorthwindContextFactory.CreateDbContext();
        Products = await Northwind.Products.ToListAsync();
        Categories = await Northwind.Categories.ToListAsync();
    }

    public void Dispose() {
        Northwind?.Dispose();
    }
}

Implements

IComponent

IHandleEvent

IHandleAfterRender

IDisposable

IComboBoxSettings

IDropDownEditSettings

IButtonEditSettings

ITextEditSettings

IEditSettings

Inheritance

Object

ComponentBase

DevExpress.Blazor.Internal.BranchedRenderComponent

DevExpress.Blazor.Internal.ParameterTrackerSettingsComponent

DxEditSettings

DxTextEditSettings

DxButtonEditSettings

DxDropDownEditSettings

DxComboBoxSettings
