DxCheckBoxSettings.UncheckedDisplayText Property

Specifies the display text string that corresponds to the checkbox editor’s unchecked state.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v23.1.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(null)]
[Parameter]
public string UncheckedDisplayText { get; set; }

Property Value

Type	Default	Description
String	null	A text string.

Remarks

Specify the UncheckedDisplayText property to change the display text string that corresponds to the checkbox editor’s unchecked state. The Grid displays this string in the following UI elements:

• Filter row
• Column filter menu
• Column cells, if the ShowCheckBoxInDisplayMode property is set to false and the Grid is in display mode

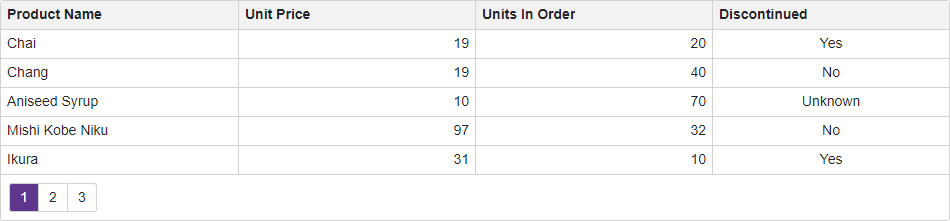

The example below displays custom strings in the Discontinued column:

Index.razor

@inject ProductService ProductData

<DxGrid Data="@products">
    <Columns>
        <DxGridDataColumn FieldName="ProductName" />
        <DxGridDataColumn FieldName="UnitPrice" />
        <DxGridDataColumn FieldName="UnitsInOrder" />
        <DxGridDataColumn FieldName="Discontinued">
            <EditSettings>
                <DxCheckBoxSettings ShowCheckBoxInDisplayMode="false"
                                    CheckedDisplayText="Yes"
                                    IndeterminateDisplayText="Unknown"
                                    UncheckedDisplayText="No" />
            </EditSettings>
        </DxGridDataColumn>
    </Columns>
</DxGrid>

@code {
    private Product[]? products;
    protected override async Task OnInitializedAsync() {
        products = await ProductData.GetData();
    }
}

Product.cs

public enum State { Yes, No, Unknown }

public class Product {
    public int ProductID { get; set; }
    public string ProductName { get; set; }
    public decimal? UnitPrice { get; set; }
    public short? UnitsInOrder { get; set; }
    public bool? Discontinued { get; set; }
}

ProductService.cs

public class ProductService {
    public Task<Product[]> GetData() {
        List<Product> products = new List<Product>();
        products.Add(new Product() { ProductID = 1, ProductName = "Chai", UnitPrice = 19, UnitsInOrder = 20, Discontinued = true });
        products.Add(new Product() { ProductID = 2, ProductName = "Chang", UnitPrice = 19, UnitsInOrder = 40, Discontinued = true });
        products.Add(new Product() { ProductID = 3, ProductName = "Aniseed Syrup", UnitPrice = 10, UnitsInOrder = 70, Discontinued = true });
        products.Add(new Product() { ProductID = 4, ProductName = "Mishi Kobe Niku", UnitPrice = 97, UnitsInOrder = 32, Discontinued = false });
        products.Add(new Product() { ProductID = 5, ProductName = "Ikura", UnitPrice = 31, UnitsInOrder = 10 });
        products.Add(new Product() { ProductID = 6, ProductName = "Chef Anton's Cajun Seasoning", UnitPrice = 22, UnitsInOrder = 12, Discontinued = false });
        products.Add(new Product() { ProductID = 7, ProductName = "Chef Anton's Gumbo Mix", UnitPrice = 21.35m, UnitsInOrder = 16, Discontinued = true });
        products.Add(new Product() { ProductID = 8, ProductName = "Grandma's Boysenberry Spread", UnitPrice = 25, UnitsInOrder = 20, Discontinued = true });
        products.Add(new Product() { ProductID = 9, ProductName = "Uncle Bob's Organic Dried Pears", UnitPrice = 30, UnitsInOrder = 24, Discontinued = false });
        products.Add(new Product() { ProductID = 10, ProductName = "Northwoods Cranberry Sauce", UnitPrice = 40, UnitsInOrder = 18, Discontinued = false });
        products.Add(new Product() { ProductID = 11, ProductName = "Queso Cabrales", UnitPrice = 21, UnitsInOrder = 30 });
        products.Add(new Product() { ProductID = 12, ProductName = "Queso Manchego La Pastora", UnitPrice = 38, UnitsInOrder = 10 });
        return Task.FromResult(products.ToArray());
    }
}

To change the display text string that corresponds to the unchecked state at runtime, use the ICheckBoxSettings.UncheckedDisplayText property.

Implements

UncheckedDisplayText
