GanttStripLineSettings.CurrentTimeCssClass Property

Specifies the CSS class that stores appearance settings to highlight the current time.

Namespace: DevExpress.Web.ASPxGantt

Assembly: DevExpress.Web.ASPxGantt.v20.1.dll

NuGet Package: DevExpress.Web

Declaration

C#

[DefaultValue("")]
public string CurrentTimeCssClass { get; set; }

VB.NET

<DefaultValue("")>
Public Property CurrentTimeCssClass As String

Property Value

Type	Default	Description
String	String.Empty	The CSS class name.

Property Paths

You can access this nested property as listed below:

Object Type	Path to CurrentTimeCssClass
ASPxGantt	.SettingsStripLine .CurrentTimeCssClass
GanttSettings	.SettingsStripLine .CurrentTimeCssClass
MVCxGantt	.SettingsStripLine .CurrentTimeCssClass

Remarks

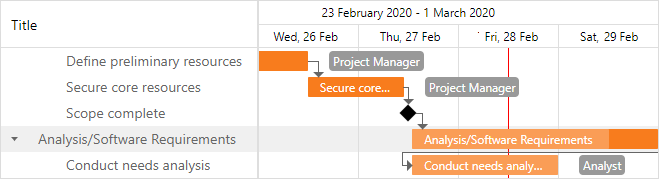

Use the CurrentTimeCssClass property to specify custom appearance settings for a strip line that highlights the current time in the Gantt chart.

Declaratively:

ASPX

<dx:ASPxGantt ID="Gantt" runat="server"...>
    ...
    <SettingsStripLine ShowCurrentTime="true" CurrentTimeUpdateInterval="5" CurrentTimeCssClass="my_class" />
</dx:ASPxGantt>

In code:

C#

Gantt.SettingsStripLine.ShowCurrentTime = true;
Gantt.SettingsStripLine.CurrentTimeUpdateInterval = "5";
Gantt.SettingsStripLine.CurrentTimeCssClass = "my_class";

Examples

• Create a Single Strip Line

• Highlight a Time Interval

Online Demos

• ASPxGantt - Strip Lines

• MVC Gantt - Strip Lines
