DiagramToolboxSettings.ShapeIconsPerRow Property

Specifies the number of shape icons in a row.

Namespace: DevExpress.Web.ASPxDiagram

Assembly: DevExpress.Web.ASPxDiagram.v20.2.dll

NuGet Package: DevExpress.Web

Declaration

C#

[DefaultValue(3)]
public int ShapeIconsPerRow { get; set; }

VB.NET

<DefaultValue(3)>
Public Property ShapeIconsPerRow As Integer

Property Value

Type	Default	Description
Int32	3	The number of shape icons.

Property Paths

You can access this nested property as listed below:

Library	Object Type	Path to ShapeIconsPerRow
ASP.NET Controls and MVC Extensions	ASPxDiagram	.SettingsToolbox .ShapeIconsPerRow
ASP.NET MVC Extensions	DiagramSettings	.SettingsToolbox .ShapeIconsPerRow
	MVCxDiagram	.SettingsToolbox .ShapeIconsPerRow

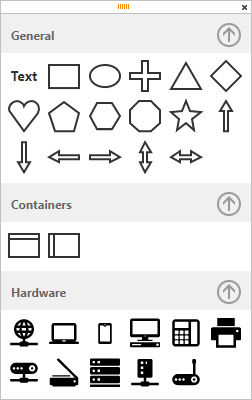

Remarks

ASPX

<dx:ASPxDiagram ID="Diagram" runat="server" Width="100%" Height="600px">
    <SettingsToolbox ShapeIconsPerRow="6" Width="250" ShowSearch="false">
        <Groups>
            <dx:DiagramToolboxGroup Category="General" />
            <dx:DiagramToolboxGroup Category="Containers" />
            <dx:DiagramToolboxGroup Category="Custom" CustomCategoryName="hardware" Title="Hardware" />
        </Groups>
    </SettingsToolbox>
    <CustomShapes>
        <dx:DiagramCustomShape CategoryName="hardware" Type="internet" ... >
    ...
</dx:ASPxDiagram>

The size of a shape in the toolbox is determined automatically based on the toolbox width and the number of shapes per row. You can use the ToolboxWidthToHeightRatio property to change the aspect ratio of a custom shape in the toolbox.
